| Место происхождения | Германия |
| Фирменное наименование | Siemens |
| Сертификация | CO.CQ |
| Номер модели | 6ГК7343-1КС10-0СЭ0 |
| Brand/Manufacturer | Siemens/GERMANY |
| Part Number | 6GK7343-1CX10-0XE0 |
| Alternate Part Number | 6GK7343-1CX10-0XE0 |
| Description | Communications processor |
| Dimennsions | WHD 40* 125*120mm |
| Weight | 0.22kg |
Product Details

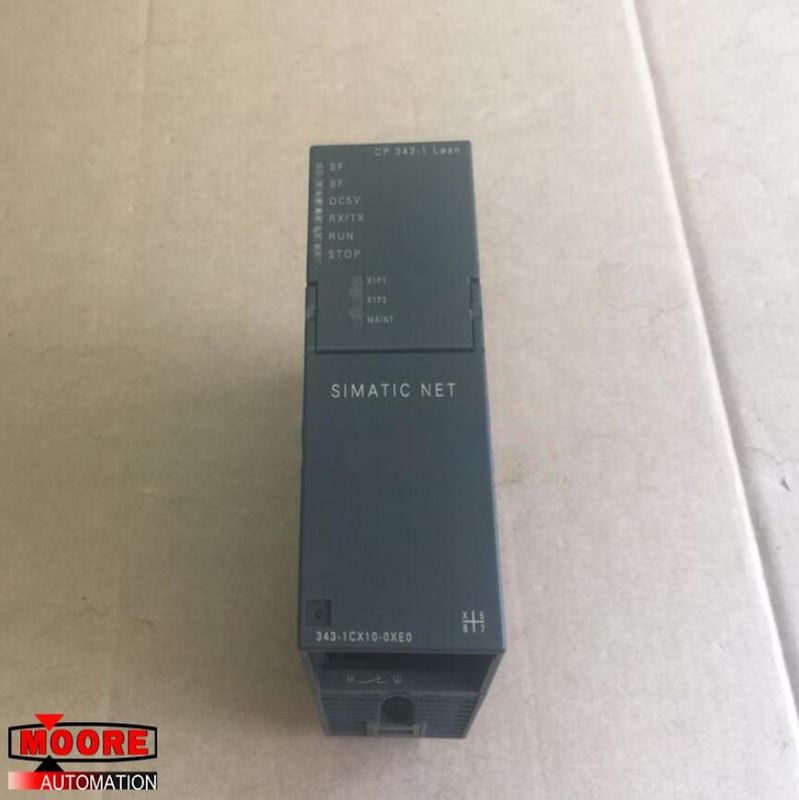

Communications processor CP 343-1 Lean for connection of SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP,Multicast, SEND/RECEIVE with and without RFC1006, Fetch/ Write,
S7 communication (server), PROFINET IO device integrated 2-port switch ERTEC 200, Module replacement without PG, SNMP diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s.
Transfer rate:at the 1st interface 10 ... 100 Mbit/s
Interfaces:
Number of interfaces / acc. to Industrial Ethernet 2
Number of electrical connections: at the 1st interface / acc. to Industrial Ethernet 2; for power supply 1
Type of electrical connection: of Industrial Ethernet interface RJ45 port; at the 1st interface / acc. to Industrial Ethernet RJ45 port
Type of electrical connection: for power supply 2-pole plugable terminal block
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage DC
Supply voltage / 1 / from backplane bus 5 V
Supply voltage 24 V
Supply voltage / external 24 V
Supply voltage / external / at DC / Rated value 24 V
Relative positive tolerance / at DC / at 24 V 20 %
Relative negative tolerance / at DC / at 24 V 15 %
Consumed current:
from backplane bus / at DC / at 5 V / typical 0.2 A
from external supply voltage / at DC / at 24 V / typical 0.16 A
from external supply voltage / at DC / at 24 V / maximum 0.2 A
Power loss [W]- 5.8 W
Performance data / PROFINET communication / as PN IO device
Product function / PROFINET IO device Yes
Amount of data:
as user data for input variables / as PROFINET IO device / maximum-512 byte
as user data for input variables / as PROFINET IO device / maximum-512 byte
as user data for input variables / for each submodule as PROFINET IO device-240 byte
as user data for input variables / for each submodule as PROFINET IO device-240 byte
as user data for the consistency area for each sub-module-240 byte
Number of submodules / per PROFINET IO-Device 32
